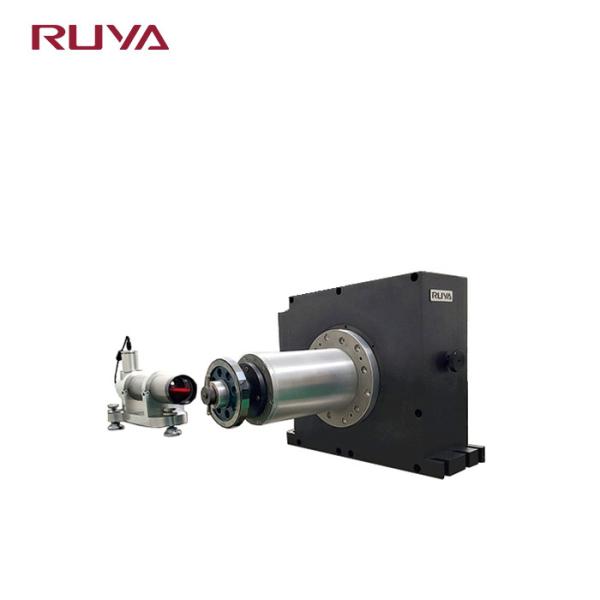

ZDFT-360A Program Controlled Automatic Multi Tooth Indexing Table

  • 1
  • 2

Price : negotiable

Brand Name : RUYA

Model Number : ZDFT-360A

Certification : ISO 9001

Place of Origin : China

MOQ : 1 pc

Payment Terms : T/T

Supply Ability : 1-10 pcs, 4-6 weeks

Delivery Time : 20-30 working days

Packaging Details : wooden box

Load (kg) : 30

Weight (kg) : 45

Table diameter (mm) : Φ205

Dimensions (mm) : 368x138x362

Contact Now

ZDFT-360A Program-controlled Automatic Multi-tooth Indexing Table

Product Description

The segmented multi-tooth indexing table consists of a multi-tooth indexing table and a set of segmented drum wheel reading systems, which can achieve the highest resolution of angle readings up to 0.1" on both fixed and movable reading sleeves, and is suitable for measurement sites where continuous readings are required.

The program-controlled multi-tooth indexing table is controlled by a computer-controlled stepper motor to realize the lifting and rotation of the upper tooth disc, so that the work of the multi-tooth indexing table is controlled by the program to achieve automatic testing.

Product Parameters

Model

ZDFT-360A

Table diameter (mm)

Φ205

Dimensions (mm)

368x138x362

Accuracy

Vertical use

0.5"

Horizontal use

1"

Angle Measuring Repeatability Accuracy

0.2"

Load (kg)

30

Weight (kg)

45


ZDFT-360A Program Controlled Automatic Multi Tooth Indexing Table

ZDFT-360A Program Controlled Automatic Multi Tooth Indexing Table
